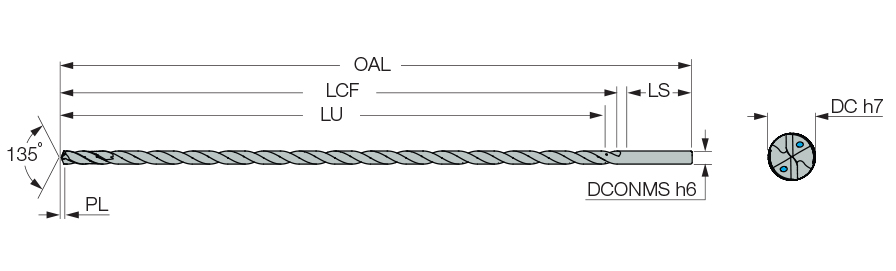

| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Grade | IC908 |
| Decimal Equivalent | 0.375″ | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 6.4961″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 7.09″ |
| Application | | Drilling | | Overall Length (OAL) | 8.86″ |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 135 Degrees | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.575″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round | Unit | I |
| Cutting Edge Material | Carbide |
Product Features

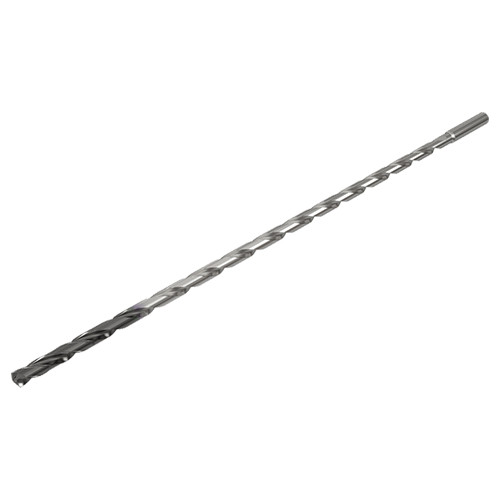

| Family Description | Solid carbide drills with internal coolant channels, drilling depth 16xD. | COO | USA |
Shipping Info
Weight per item
0.3968
Related Documentation
