SCCD 068-024-080 ACP3 IC608

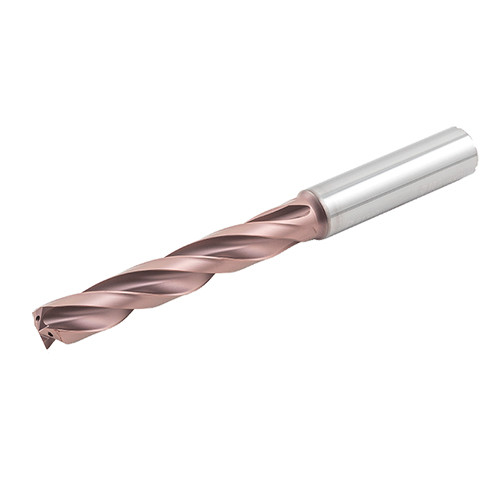

Three flute solid carbide drills with coolant holes, drilling depth 3xD

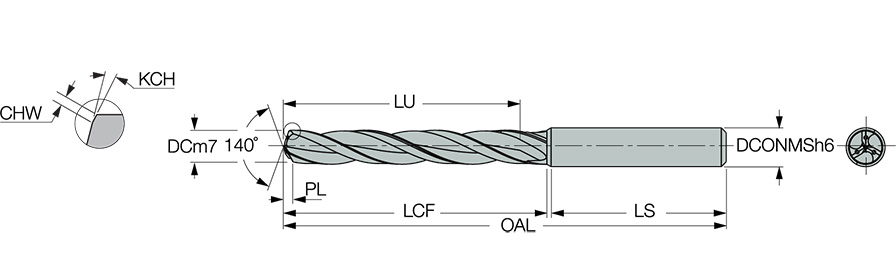

| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm | Grade | IC608 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm | Measurement Type | Metric |
| Coating | AlTiCrSiN | Usable Length (LU) | 24 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 35 mm |
| Application | | Drilling | | Overall Length (OAL) | 79 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Number of Teeth | 3 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 36 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Three flute solid carbide drills with coolant holes, drilling depth 3xD | COO | Korea |
Shipping Info
Weight per item
0.0430
