SCD 0312-125-312 WPCD

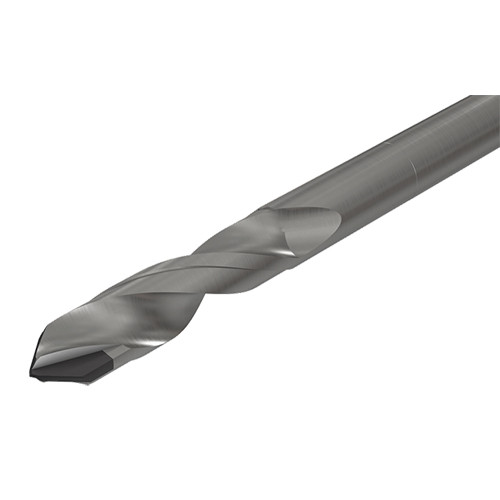

Solid carbide drills with PCD insert for composite materials (CFRP) and stack machining

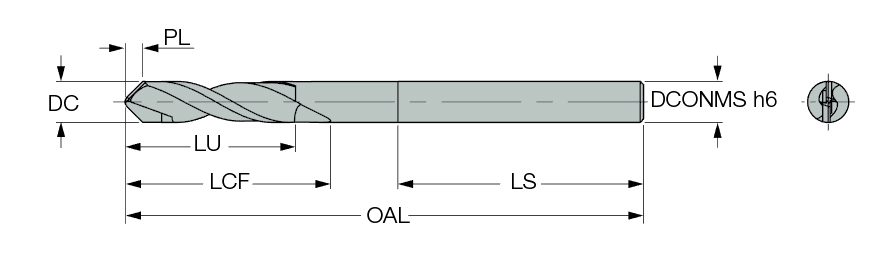

| Drill Bit Size / Cutting Diameter (DC) | 0.312″ | Usable Length (LU) | 1-1/4″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.312″ | Length Chip Flute (LCF) | 1.72″ |
| Decimal Equivalent | 0.312″ | Overall Length (OAL) | 3″ |
| Application | | Drilling | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1.18″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills | Unit | I |
| Measurement Type | Inch |
Product Features
| Family Description | Solid carbide drills with PCD insert for composite materials (CFRP) and stack machining | COO | Israel |
Shipping Info
Weight per item
0.1080
