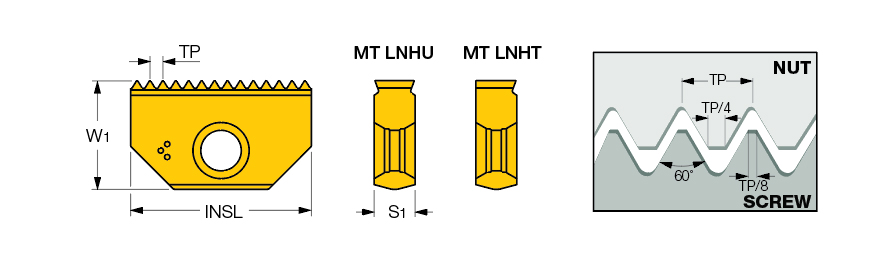

MT LNHU 1403 I2.00ISO 908
Thread milling inserts for internal ISO metric Profile. Used for general engineering.
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 2 mm | Coating | TiAlN |
| Insert Length (INSL) | 14 mm | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 7.9 mm | Measurement Type | Metric |
| Insert Thickness Total (S1) | 3.2 mm | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | INT |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | Thread milling inserts for internal ISO metric Profile. Used for general engineering. | COO | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
Shipping Info
Weight per item
0.0070
