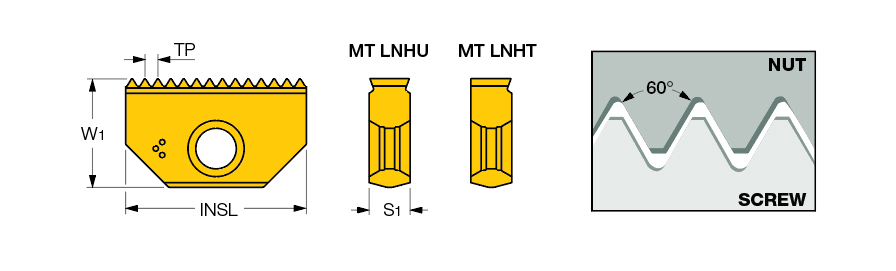

| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 2.209 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 11.5 | Tool Type | Threading Regular Inserts |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Insert Width (W1) | 16.7 mm | Body Material | Carbide |
| Insert Thickness Total (S1) | 5.6 mm | Thread Form Type (THFT) | NPS |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | External & internal NPS (American Standard Straight Pipe Thread) full profile thread milling inserts. Used for mechanical joints and pipe fittings. | COO | Israel |
| Remarks | The same insert for external & internal threading For cutting speed recommendations, Click on More Info |
Shipping Info
Weight per item
0.0375
