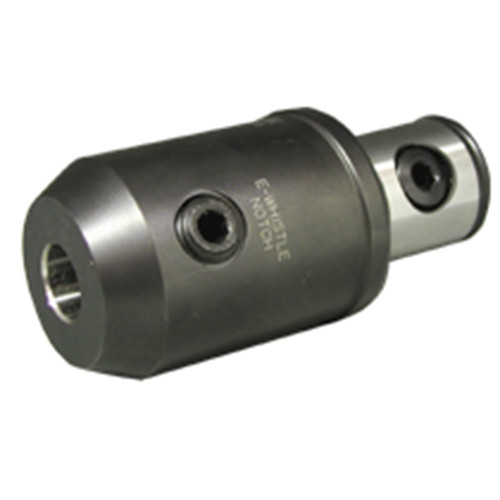

EMH MB50-12
Weldon and Whistle Notch side-lock holders with the MB modular boring connection system.

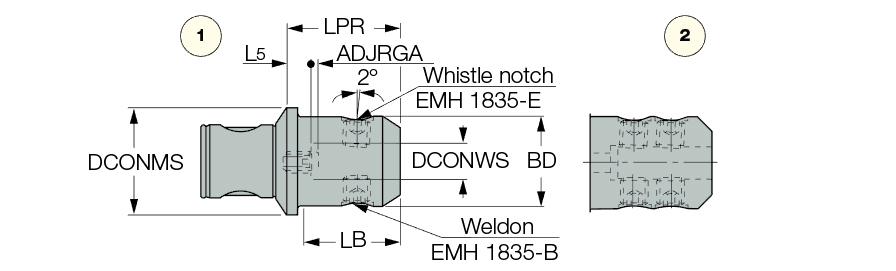

| Shank Size (SS) | MB50 | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 57 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Tool Type | MB General Tools Holders |
| Connection Size (CSI) | W12 | Unit | M |
Product Features
| Family Description | Weldon and Whistle Notch side-lock holders with the MB modular boring connection system. | COO | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Weight per item
1.0020
