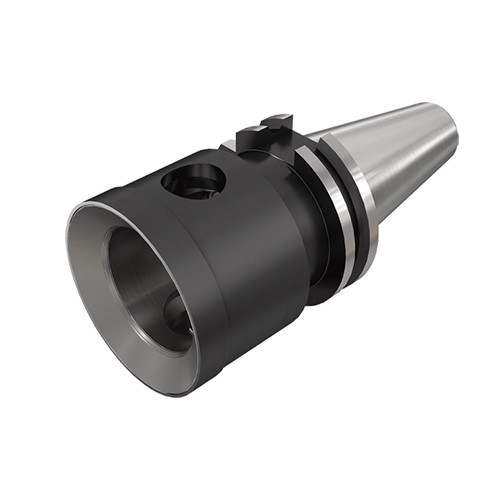

SKA 50-MB50

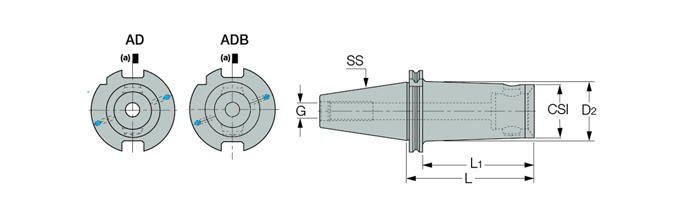

MB modular connection system with DIN69871 form AD ISO 7388/1 taper shanks
| Shank Size (SS) | 50 | Body Material | Steel |
| Protruding Length (LPR) | 48 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Tool Type | DIN 69871 |
| Connection Size (CSI) | MB50 | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | MB modular connection system with DIN69871 form AD ISO 7388/1 taper shanks | COO | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability The coolant passages of holders with A/B suffix are plugged with screws so they can be used either as SKA or SKB (through coolant). |
Shipping Info
Weight per item
2.8130
