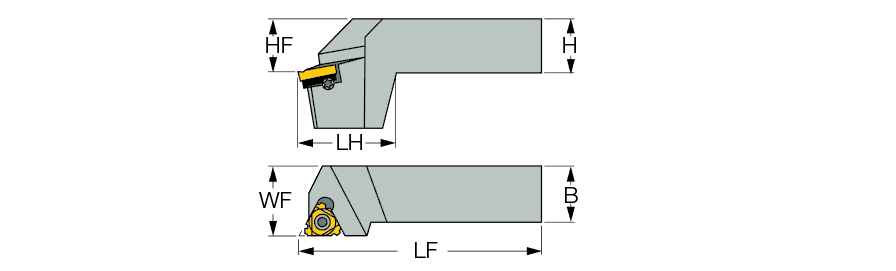

| Head Length (LH) | 38 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Tool Type | External Non-Rotating Threading Tools |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Ext. Grooving | External Threading | | Functional Length (LF) | 150 mm |
| Functional Width (WF) | 32 mm |
Product Features

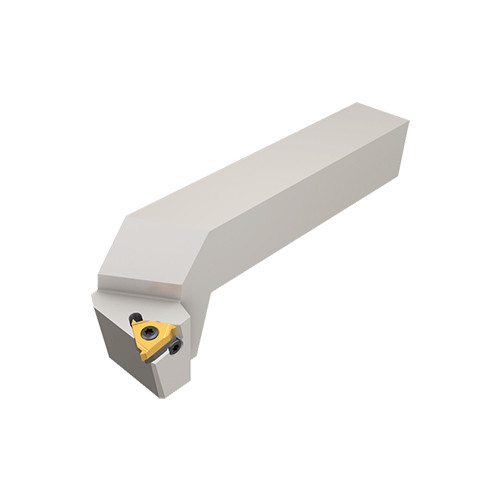

| Family Description | External threading, drophead toolholders. Designed for upside-down position keeping cutting edge height at the same level as regular tools | FamilyName | SER-D |
| Remarks | All toolholders are made for 1.5 helix angle. For GTGA inserts, use anvil AE 16-0 Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8760
Name
Laydown Threading Indexable Holders
FamilyName
SER-D
BrandName
Iscar
