E12 SIR-11 HEAD
Interchangeable threading heads, used on carbide bars.

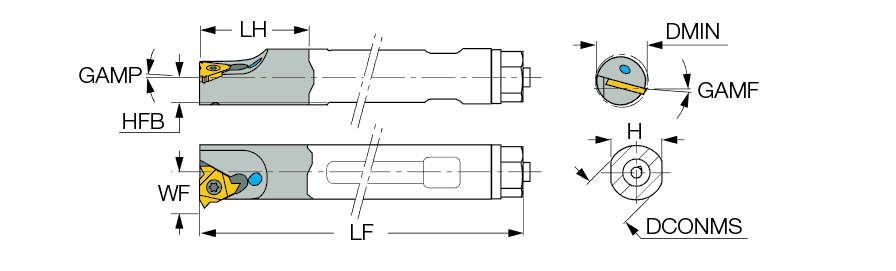

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 14.9 mm | Body Material | Steel |
| Head Length (LH) | 24.8 mm | Tool Type | Internal Indexable Threading Tools |
| Shank Height (H) | 11 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Interchangeable threading heads, used on carbide bars. | FamilyName | E-SIR-HEAD |
| Remarks | Used on carbide shanks | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0370
Name
Laydown Threading Indexable Holders
FamilyName
E-SIR-HEAD
BrandName
Iscar
