22ER 5 BUT 0.75 IC250
External BUT - oil thread profile (API STD.5B) laydown threading inserts, for buttress casing.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |

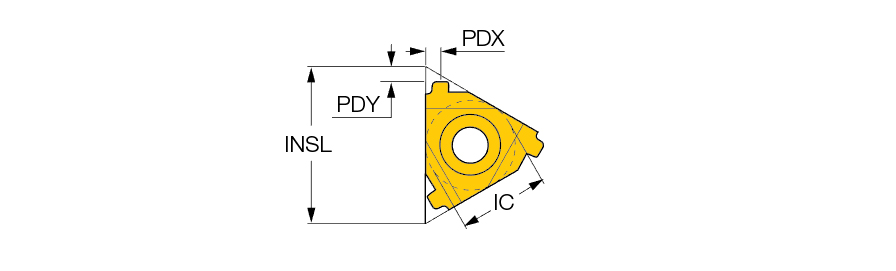

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 5 Threads/" | Measurement Type | Metric |
| Grade | IC250 | Body Material | Carbide |
| Coating | TiCN+TiN | Thread Form Type (THFT) | BUT |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Threading | | Profile Distance EY (PDY) | 2.2 mm |
Product Features
| Family Description | External BUT - oil thread profile (API STD.5B) laydown threading inserts, for buttress casing. | FamilyName | ER-BUT |
| Remarks | For Insert Identification System, click on More Info API STD.5B | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0040
Name
Laydown Threading Indexable Inserts
FamilyName
ER-BUT
BrandName
Iscar
