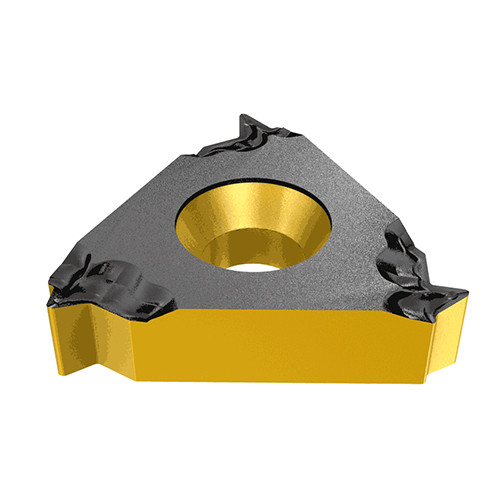

16IL 14 BSPT IC908
Internal BSPT (British standard pipe), full profile laydown threading inserts. IR/L - Ground periphery and rake, IRB - With a chipformer and peripherally ground, IRM - With a chipformer. Application: steam, gas and water pipes.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

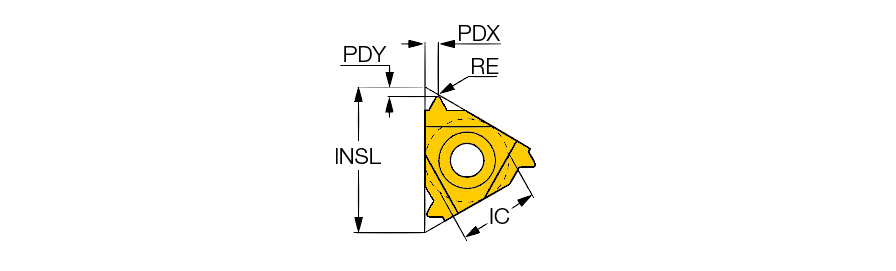

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 14 | Measurement Type | Metric |
| Corner Radius (RE) | 0.21 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | BSPT55 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1 mm |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal BSPT (British standard pipe), full profile laydown threading inserts. IR/L - Ground periphery and rake, IRB - With a chipformer and peripherally ground, IRM - With a chipformer. Application: steam, gas and water pipes. | FamilyName | IR/L-BSPT |
| Remarks | For Insert Identification System, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0056
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-BSPT
BrandName
Iscar
