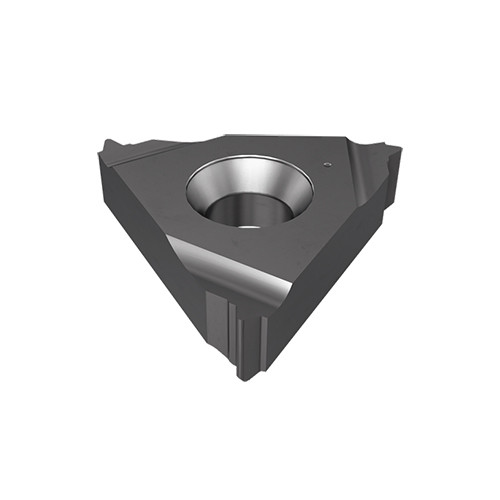

16ER 1.25 MJ IC908
External MJ ISO 5855 metric full profile laydown threading inserts. Used for aviation and aerospace industries
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

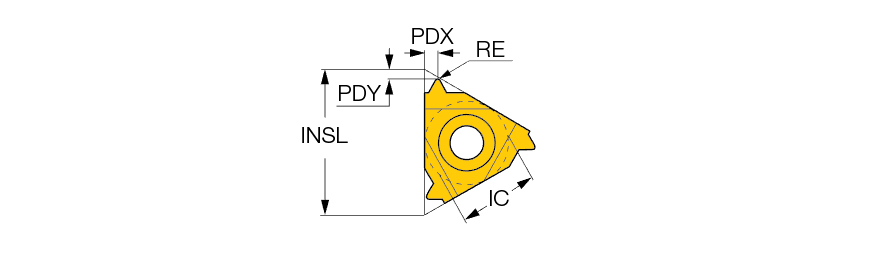

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Thread Pitch (TP) | 1.25 mm | Measurement Type | Metric |
| Corner Radius (RE) | 0.21 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | MJ60 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.8 mm |
| Application | | External Threading | |
Product Features
| Family Description | External MJ ISO 5855 metric full profile laydown threading inserts. Used for aviation and aerospace industries | FamilyName | ER-MJ |
| Remarks | For Insert Identification System, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0076
Name
Laydown Threading Indexable Inserts
FamilyName
ER-MJ
BrandName
Iscar
