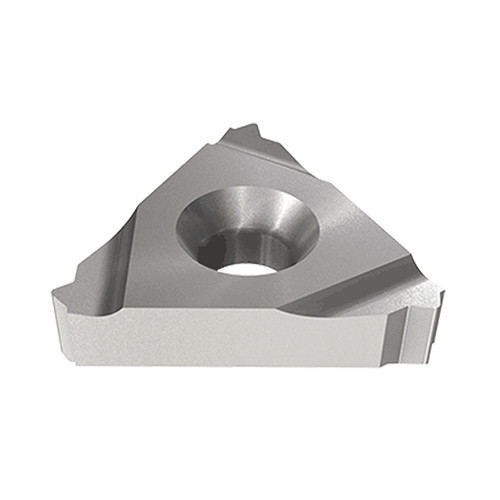

16ER 20 PG IC908
External threading inserts for the electric industry.
| Thread Standard | THFT | | Application | | External Threading | |

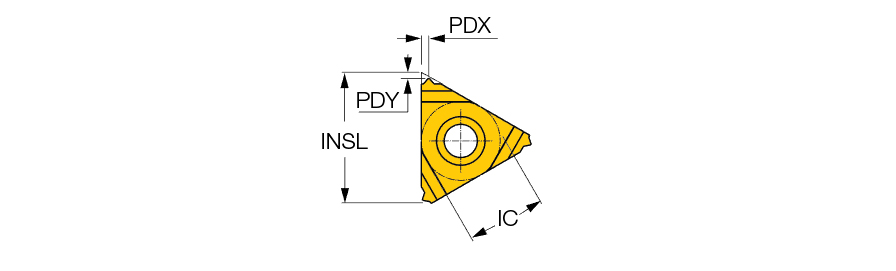

| Inscribed Circle Diameter (IC) | 9.52 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 16.49 mm | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.27 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 20 | Measurement Type | Metric |
| Corner Radius (RE) | 0.13 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | PG |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.7 mm |
Product Features
| Family Description | External threading inserts for the electric industry. | FamilyName | ER-PG |
| Remarks | For Insert Identification System, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0060
Name
Laydown Threading Indexable Inserts
FamilyName
ER-PG
BrandName
Iscar
