| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

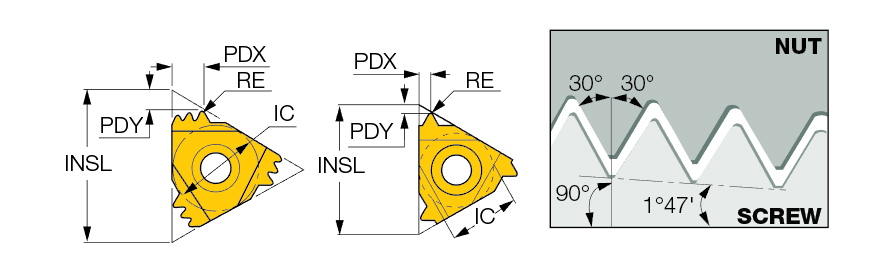

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 18 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.05 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NPT60 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Threading | | Profile Distance EY (PDY) | 0.8 mm |
Product Features

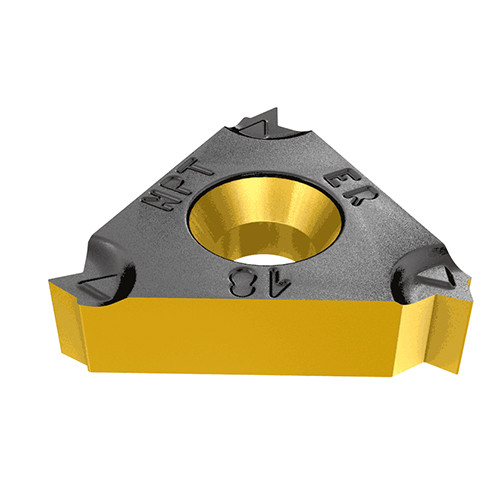

| Family Description | External NPT (National Pipe Threads) full profile laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Used for steam, gas and water pipes. | FamilyName | ER/L-NPT |
| Remarks | For Insert Identification System, click on More Info. For threading between walls use GRIP-type insert TIP-NPT. National Pipe Threads ANSI/ASME B1.20.1-1983 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0074
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-NPT
BrandName
Iscar
