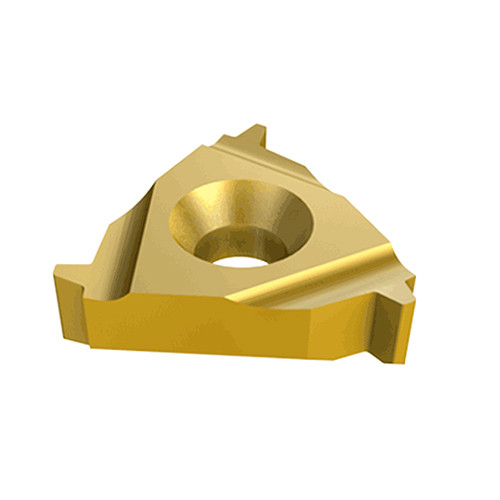

27EL 4 ACME IC908
External ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

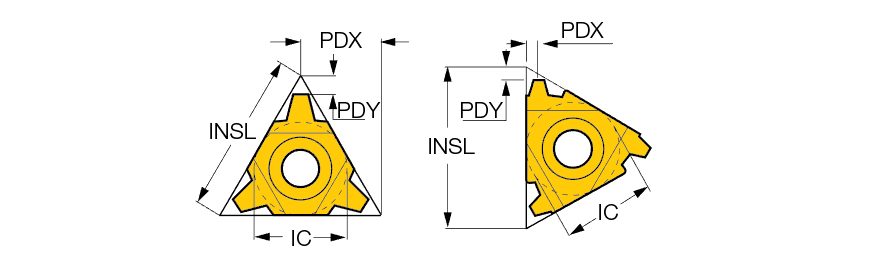

| Inscribed Circle Diameter (IC) | 15.88 mm | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 27.5 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 4 | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | AC29 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 2.3 mm |
Product Features
| Family Description | External ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. | FamilyName | ER/L-ACME |
| Remarks | For Insert Identification System, click on More Info. ACME ASME/ANSI B1.5-1988 Class 3G | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0266
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-ACME
BrandName
Iscar
Related Documentation
