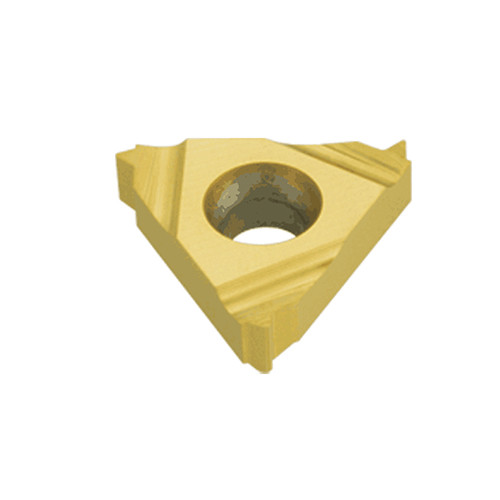

16ER 14 NPTF IC908
External NPTF (National Pipe Threads-Dry seal) ANSI/ASME B1.20.1-1976, full profile laydown threading inserts. Used for steam, gas and water pipes.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

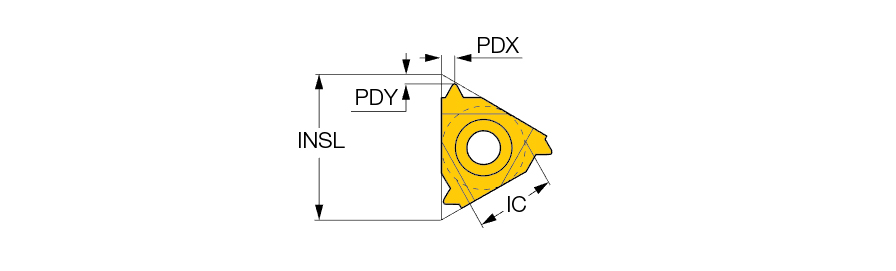

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 14 | Measurement Type | Metric |
| Corner Radius (RE) | 0.04 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | NPTF60 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.9 mm |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | |
Product Features
| Family Description | External NPTF (National Pipe Threads-Dry seal) ANSI/ASME B1.20.1-1976, full profile laydown threading inserts. Used for steam, gas and water pipes. | FamilyName | ER-NPTF |
| Remarks | For Insert Identification System, click on More Info (National Pipe Threads-Dry Seal) ANSI/ASME B1.20.1-1976 full profile | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0054
Name
Laydown Threading Indexable Inserts
FamilyName
ER-NPTF
BrandName
Iscar
