| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

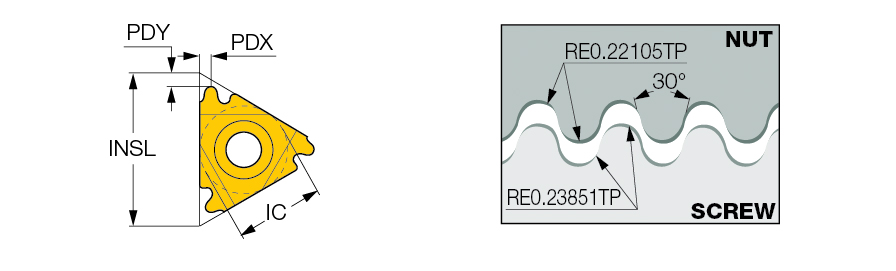

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 0.94 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | RN30 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1.5 mm |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal round laydown threading inserts, for firefighting and food industry, pipe couplings (DIN 405 API spec 5B-8-1996). | FamilyName | IR/L-RND |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 7H | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0066
Name

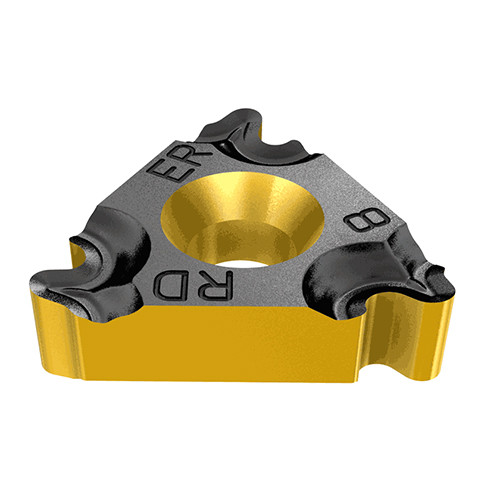

Laydown Threading Indexable Inserts
FamilyName
IR/L-RND
BrandName
Iscar
