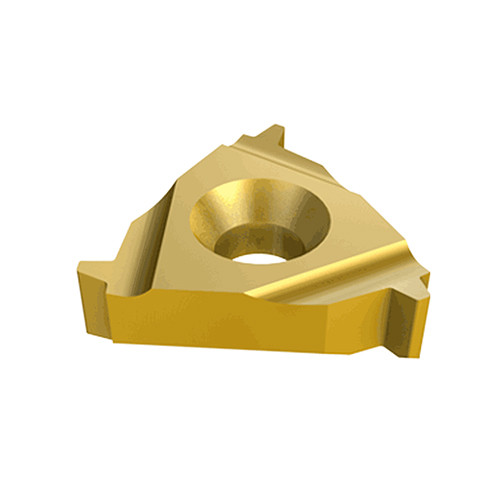

16EL 10 STACME IC50M
External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |

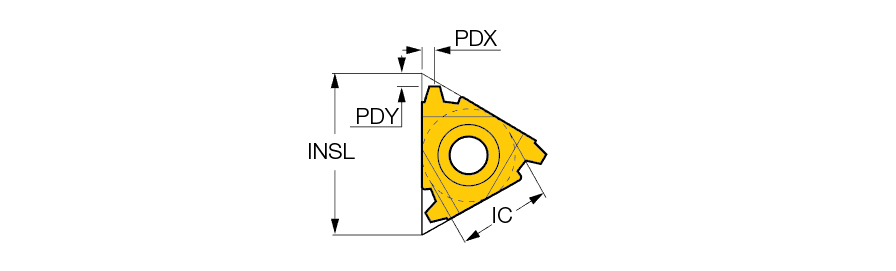

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 10 | Measurement Type | Metric |
| Grade | IC50M | Body Material | Carbide |
| Coating | Uncoated | Thread Form Type (THFT) | STAC29 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Threading | | Profile Distance EY (PDY) | 1.3 mm |
Product Features
| Family Description | External STUB ACME lay down threading inserts, for control valves and shallow ACME profile, when normal ACME is too deep due to wall thickness. | FamilyName | ER/L-STACME |
| Remarks | For Insert Identification System, click on More Info STUB ACME ASME/ANSI B1.8-1988 Class 2G | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0060
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-STACME
BrandName
Iscar
