| Thread Standard | THFT | | Threads per Inch Minimum (TPIN) | 3.25 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Threads per Inch Maximum (TPIX) | 4.5 |
| Insert Length (INSL) | 22 mm | Thread Pitch Minimum (TPN) | 5.5 mm |
| Corner Radius (RE) | 0.6 mm | Thread Pitch Maximum (TPX) | 8 mm |
| Grade | IC50M | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Thread Form Type (THFT) | VP55 |
| Applicable Material | | Steel | Stainless Steel | | Unit | M |

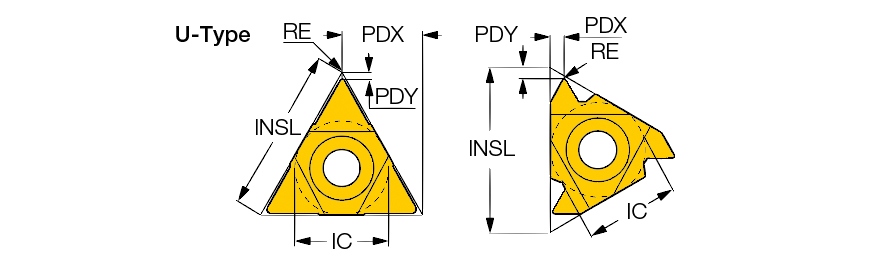

| Cutting Direction (HAND) | U-Type | Profile Distance EY (PDY) | 0.9 mm |
Product Features

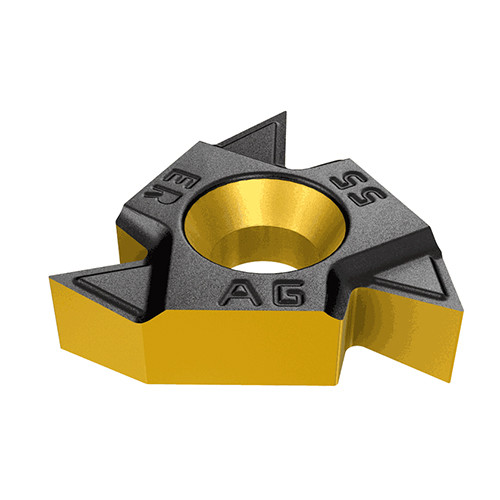

| Family Description | External 55° partial profile, laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general applications | FamilyName | ER/L-55° |
| Remarks | For insert identification system, click on More Info For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0116
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-55°
BrandName
Iscar
