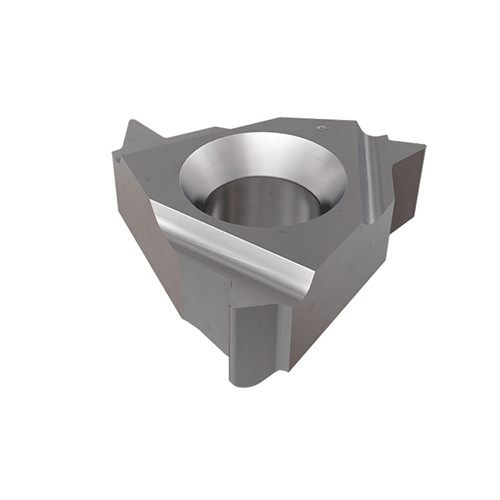

08IR 13 UN IC908
Internal American UN, Full Profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

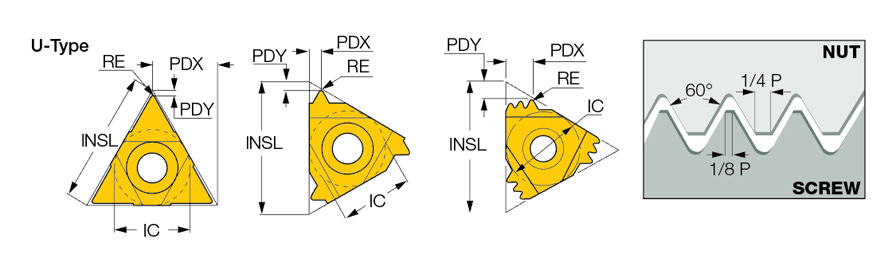

| Inscribed Circle Diameter (IC) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 8.24 mm | Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 13 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.14 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Internal Thread Milling | Internal Threading lay down | | Profile Distance EY (PDY) | 0.6 mm |
Product Features
| Family Description | Internal American UN, Full Profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry. | FamilyName | IR/L-UN |
| Remarks | For Insert Identification System, click on More Info Tolerance: class 2B,ANSI B1, 3M-1986 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0018
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-UN
BrandName
Iscar
