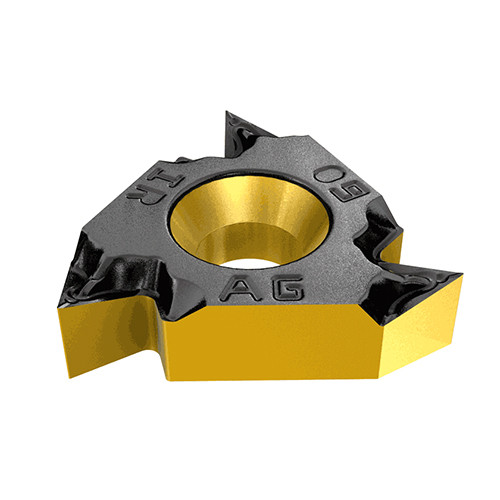

06IR A 60 IC908
Internal 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications
| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |

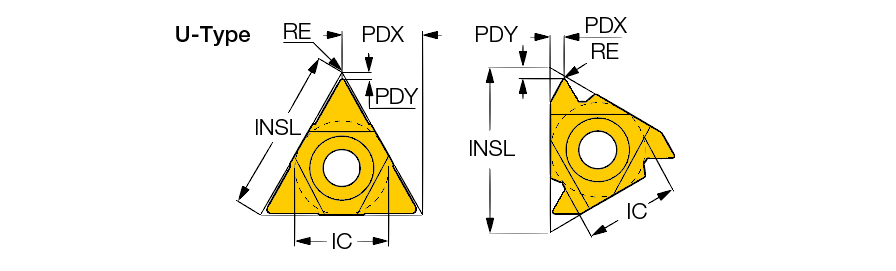

| Inscribed Circle Diameter (IC) | 4 mm | Threads per Inch Minimum (TPIN) | 20 |
| Insert Length (INSL) | 6.88 mm | Threads per Inch Maximum (TPIX) | 48 |
| Corner Radius (RE) | 0.05 mm | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | VP60 |
| Application | | Internal Thread Milling | Internal Threading lay down | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.5 mm |
Product Features
| Family Description | Internal 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications | FamilyName | IR/L-60° |
| Remarks | For Insert Identification System, click on More Info. DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0016
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-60°
BrandName
Iscar
