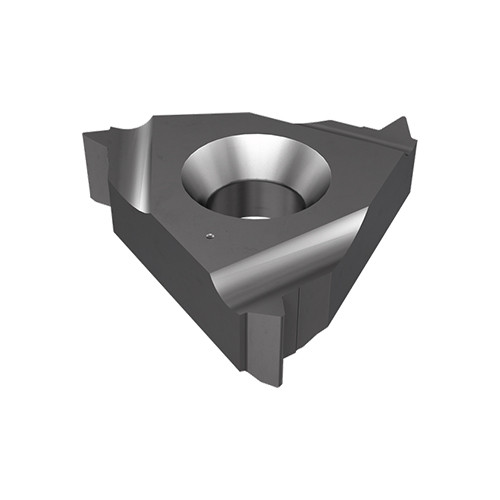

16IR 12 UNJ IC806
Internal UNJ ( MIL-S-8879C 9-1992 Class 3B ) profile, laydown threading inserts. Application: aviation and aerospace industry.
| Thread Standard | THFT | | Applicable Material | | Super-Alloys / Titanium | |

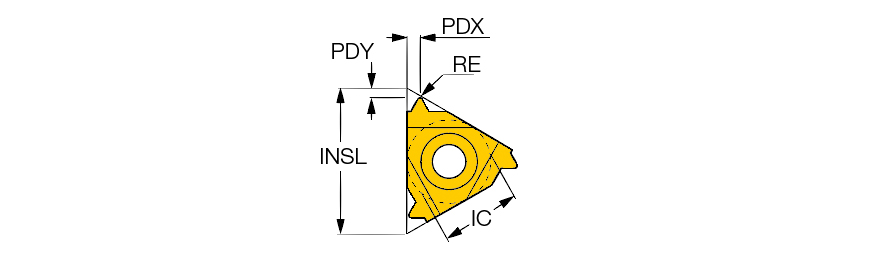

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 12 | Measurement Type | Metric |
| Corner Radius (RE) | 0.12 mm | Body Material | Carbide |
| Grade | IC806 | Thread Form Type (THFT) | NJ60 |
| Coating | AlTiN "SUMO TEC" | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1.1 mm |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal UNJ ( MIL-S-8879C 9-1992 Class 3B ) profile, laydown threading inserts. Application: aviation and aerospace industry. | FamilyName | IR/L-UNJ |
| Remarks | For Insert Identification System, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0072
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-UNJ
BrandName
Iscar
