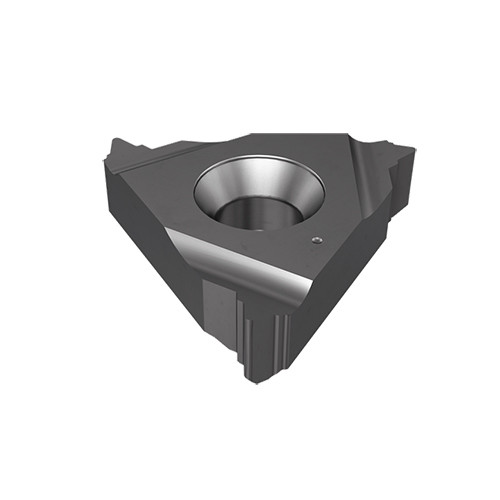

16ER 32 UNJ IC806
External UNJ ( MIL-S-8879C 9-1992 Class 3A ) profile, laydown threading inserts. Application: aviation and aerospace industry.

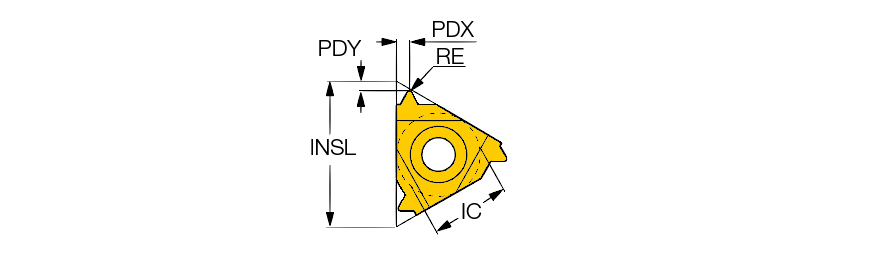

| Thread Standard | THFT | | Applicable Material | | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 32 | Measurement Type | Metric |
| Corner Radius (RE) | 0.13 mm | Body Material | Carbide |
| Grade | IC806 | Thread Form Type (THFT) | NJ60 |
| Coating | AlTiN "SUMO TEC" | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.6 mm |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | |
Product Features
| Family Description | External UNJ ( MIL-S-8879C 9-1992 Class 3A ) profile, laydown threading inserts. Application: aviation and aerospace industry. | FamilyName | ER/L-UNJ |
| Remarks | UNJ MIL-S-8879C 9-1992 Class 3A For Insert Identification System, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0062
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-UNJ
BrandName
Iscar
