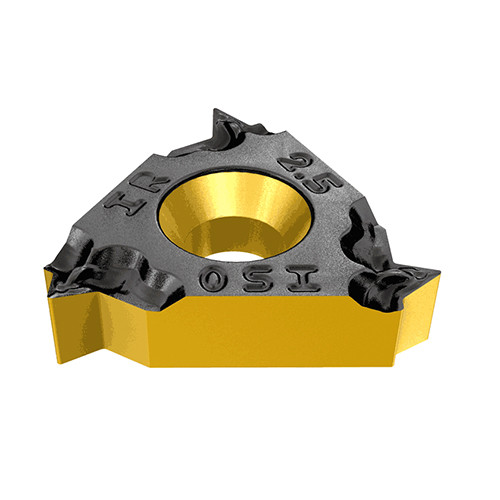

16IR 2.50 ISO IC1007
Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

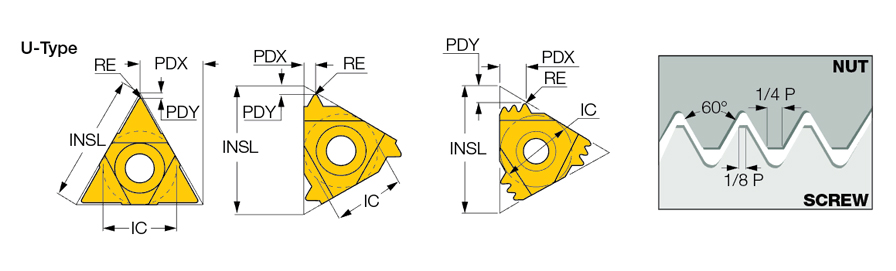

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Cutting Item Count (CICT) | 1 |
| Thread Pitch (TP) | 2.5 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.19 mm | Measurement Type | Metric |
| Grade | IC1007 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Internal Thread Milling | Internal Threading lay down | | Profile Distance EY (PDY) | 1.2 mm |
Product Features
| Family Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. | FamilyName | IR/L-ISO |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 6H | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0056
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-ISO
BrandName
Iscar
