GIFI 4.78-0.55 IC20
Precision double-ended inserts for internal grooving and recessing at low to medium feeds. Min. bore diameter 20 mm.

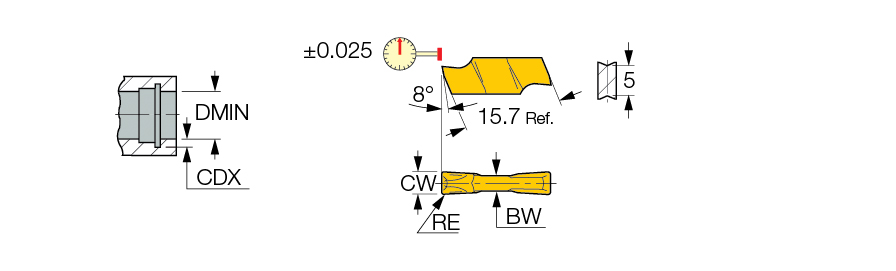

| Cutting Width (CW) | 4.78 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.55 mm | Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 15.5 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Measurement Type | Metric |
| Insert Length (INSL) | 15.7 mm | Tool Type | Groove-Turn Precision Inserts |
| Minimum Bore Diameter (DMIN) | 20 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IC20 |
Product Features
| Family Description | Precision double-ended inserts for internal grooving and recessing at low to medium feeds. Min. bore diameter 20 mm. | FamilyName | GIFI |
| Remarks | DMIN for internal applications = 20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0065
Name
Groove/Turn Indexable Inserts
FamilyName
GIFI
BrandName
Iscar
