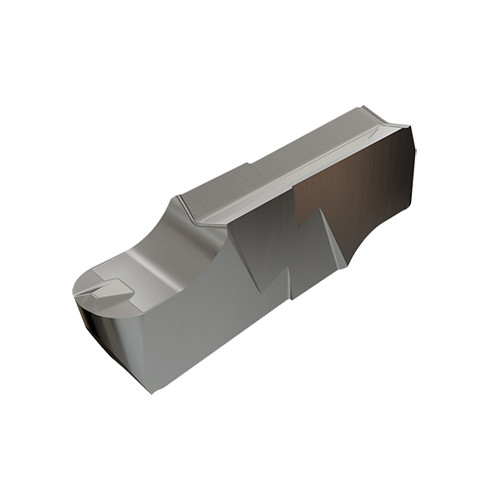

GIPI 3.96-1.98 IC8250
Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore 20 mm.

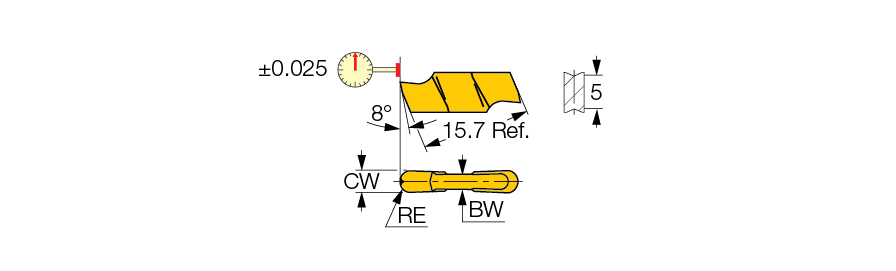

| Cutting Width (CW) | 3.96 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.98 mm | Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Clearance Angle Major (AN) | 8 Degrees | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 15.7 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
Product Features
| Family Description | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore 20 mm. | FamilyName | GIPI (full radius) |
| Remarks | Dmin for internal application= 20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0049
Name
Groove/Turn Indexable Inserts
FamilyName
GIPI (full radius)
BrandName
Iscar
