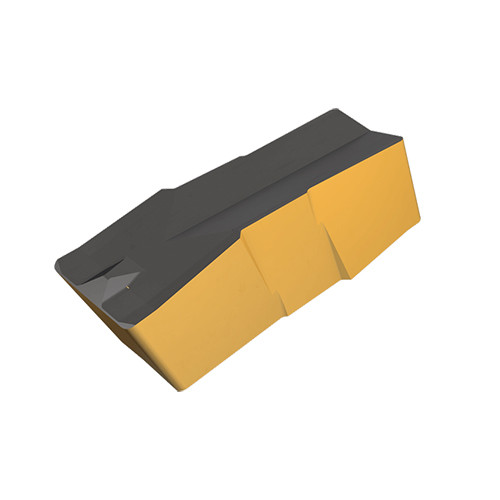

GIP 4.78E-0.55 IC808
Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds.

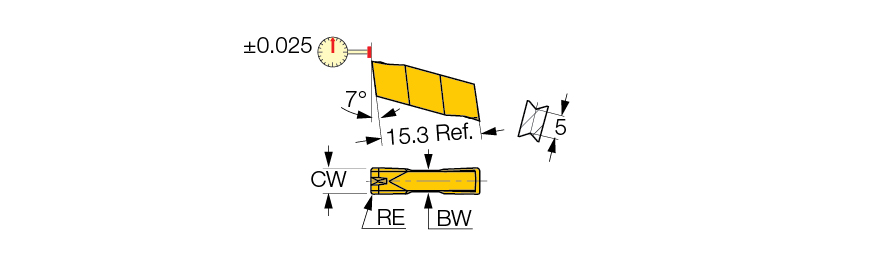

| Cutting Width (CW) | 4.78 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.55 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Side Slotting | Slitting | T Slotting | |
| Cutting Depth Maximum (CDX) | 13 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Insert Length (INSL) | 15.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | M |
Product Features
| Family Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. | FamilyName | GIP-E |
| Remarks | DMIN for internal machining = 70 mm For slitting, side slotting and T-slotting applications, the maximum grooving depth is 13 mm. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0066
Name
Groove/Turn Indexable Inserts
FamilyName
GIP-E
BrandName
Iscar
