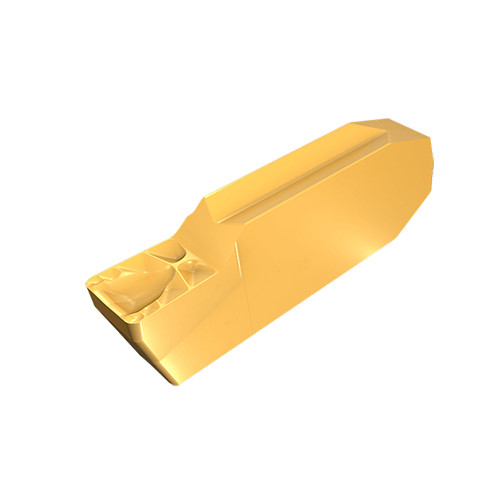

GIMIY 304 IC808
Utility inserts for internal turning and grooving. Single-ended, Y-type chipformer, low-to- medium feeds. Min. bore 20 mm.

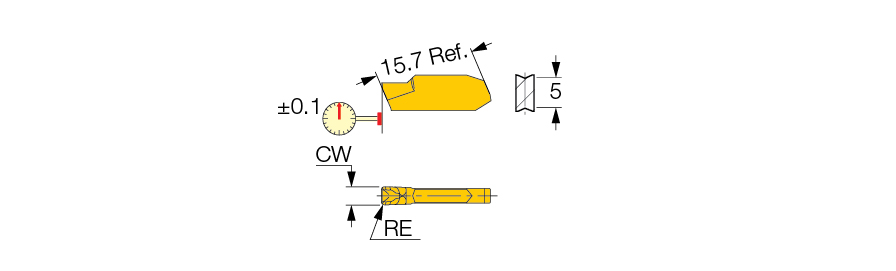

| Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.4 mm | Chip Breaker Type | Y |
| Insert Length (INSL) | 15.7 mm | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC808 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Int. Groove & Turn | Int. Grooving | |
Product Features
| Family Description | Utility inserts for internal turning and grooving. Single-ended, Y-type chipformer, low-to- medium feeds. Min. bore 20 mm. | FamilyName | GIMIY |
| Remarks | DMIN for internal applications=20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0029
Name
Groove/Turn Indexable Inserts
FamilyName
GIMIY
BrandName
Iscar
