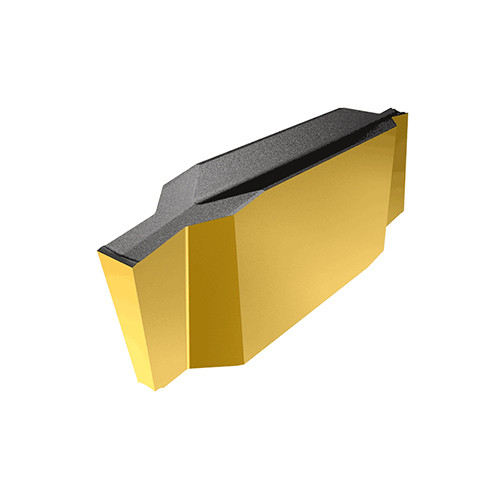

GIP 1.04-0.00 IC808
Flat top precision double-ended ground inserts for grooving
| Cutting Width (CW) | 1.04 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0 mm | Application | | Ext. Grooving | Int. Grooving (side limit) | |
| Cutting Depth Maximum (CDX) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Insert Length (INSL) | 15.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | M |
Product Features
| Family Description | Flat top precision double-ended ground inserts for grooving | FamilyName | GIP (flat top CW<BW) |
| Remarks | DMIN for internal machining = 70 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0036
Name
Groove/Turn Indexable Inserts
FamilyName
GIP (flat top CW<BW)
BrandName
Iscar
