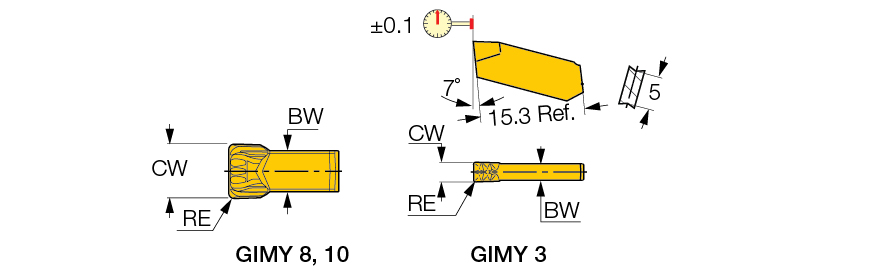

| Cutting Width (CW) | 8 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | Side Slotting | Slitting | T Slotting | |
| Corner Radius (RE) | 0.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | Y |
| Insert Length (INSL) | 15.3 mm | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Minimum Bore Diameter (DMIN) | 70 mm | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC808 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. | FamilyName | GIMY |
| Remarks | DMIN for internal applications =70mm For slitting, side slotting and T-slotting applications, the maximum grooving depth is 13 mm. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0099
Name
Groove/Turn Indexable Inserts
FamilyName
GIMY
BrandName
Iscar
