TAGB 840Y IC808
Grooving turning and parting wide single-ended inserts. Used for tough applications and hard materials. A positive rake, single cavity with negative land and shoulders, provide extra cutting-edge strength. Medium-to-high feeds.

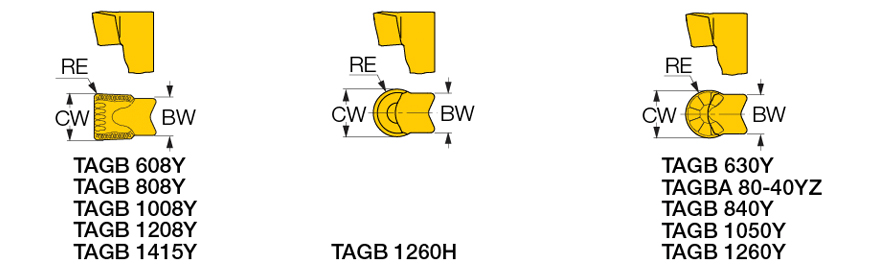

| Cutting Width (CW) | 8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 4 mm | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC808 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
Product Features
| Family Description | Grooving turning and parting wide single-ended inserts. Used for tough applications and hard materials. A positive rake, single cavity with negative land and shoulders, provide extra cutting-edge strength. Medium-to-high feeds. | FamilyName | TAGB/TAGBA |

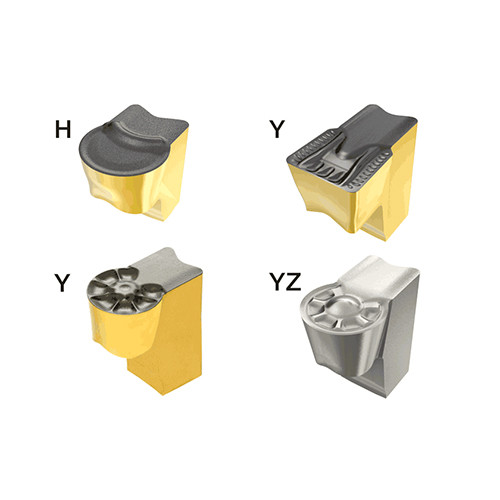

| Remarks | H-type chipformer with a negative T-land for machining heavy interrupted applications and cast iron parts | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0118
Name
Groove/Turn Indexable Inserts
FamilyName
TAGB/TAGBA
BrandName
Iscar
