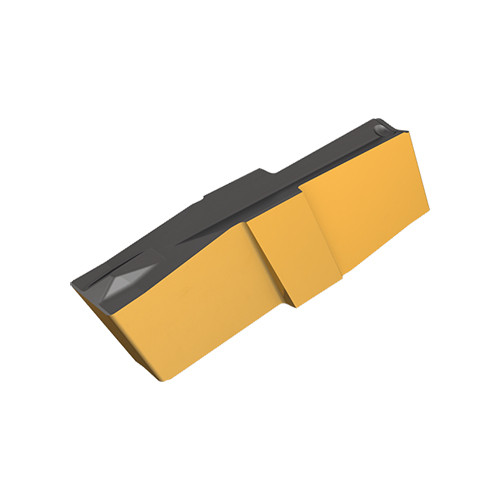

GIP 2.87-0.20 IC908
Precision-ground inserts for grooving and recessing. Double-ended, P-type chipformer.

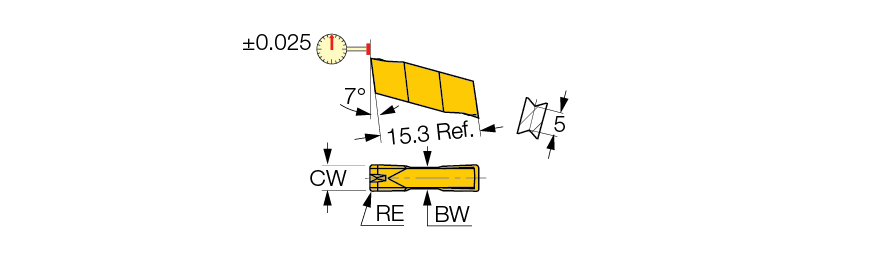

| Cutting Width (CW) | 2.87 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2 mm | Application | | Ext. Grooving | Int. Grooving | Side Slotting | Slitting | T Slotting | |
| Cutting Depth Maximum (CDX) | 13 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Insert Length (INSL) | 15.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | Precision-ground inserts for grooving and recessing. Double-ended, P-type chipformer. | FamilyName | GIP |
| Remarks | DMIN for internal machining = 70 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0042
Name
Groove/Turn Indexable Inserts
FamilyName
GIP
BrandName
Iscar
