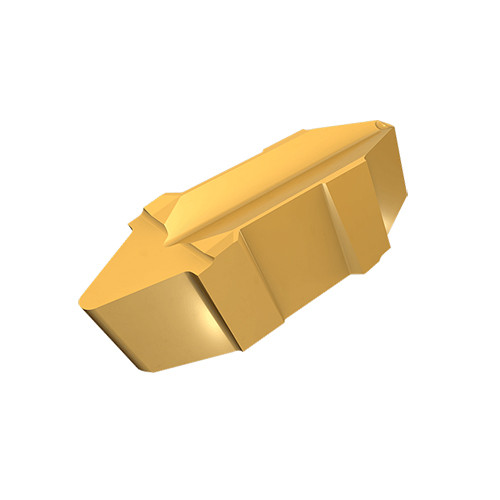

GPV 14-2.34-4 IC428
Precision inserts for grooving multi V-ribbed pulleys

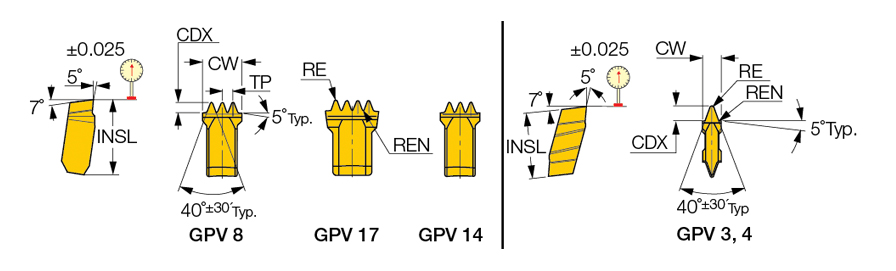

| Cutting Width (CW) | 9.82 mm | Application | | Ext. Grooving | Pulley V Grooving | |
| Corner Radius (RE) | 0.32 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Cutting Depth Maximum (CDX) | 2.21 mm | Number of Teeth | 4 |
| Clearance Angle Major (AN) | 7 Degrees | Thread Pitch (TP) | 2.34 mm |
| Insert Length (INSL) | 24 mm | Measurement Type | Metric |
| Insert Rake Angle (GAN) | 5 Degrees | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiC+Al2O3 | Body Material | Carbide |
| Grade | IC428 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision inserts for grooving multi V-ribbed pulleys | FamilyName | GPV |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0272
Name
Groove/Turn Indexable Inserts
FamilyName
GPV
BrandName
Iscar
