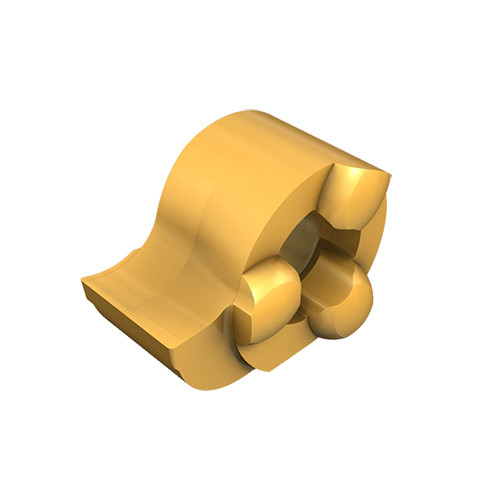

GIQL 11-0.75-0.00 IC528
Precision ground single-ended inserts for internal grooving and turning, DMIN 11 mm.

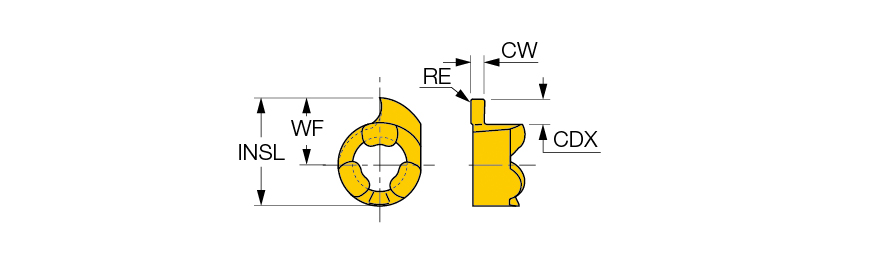

| Cutting Width (CW) | 0.75 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0 mm | Application | | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Insert Length (INSL) | 10.68 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 11 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC528 | Unit | M |
Product Features
| Family Description | Precision ground single-ended inserts for internal grooving and turning, DMIN 11 mm. | FamilyName | GIQR/L 11 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0031
Name
Groove/Turn Indexable Inserts
FamilyName
GIQR/L 11
BrandName
Iscar
