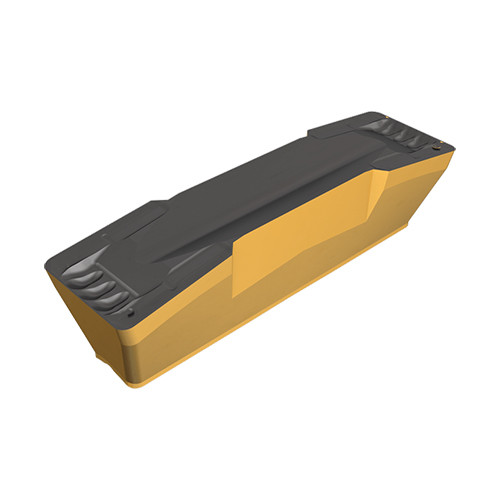

GDMY 808 IC428
Utility, double-ended inserts. Used for heavy-duty turning, profiling and grooving. Maximum machining depth is 27 mm.

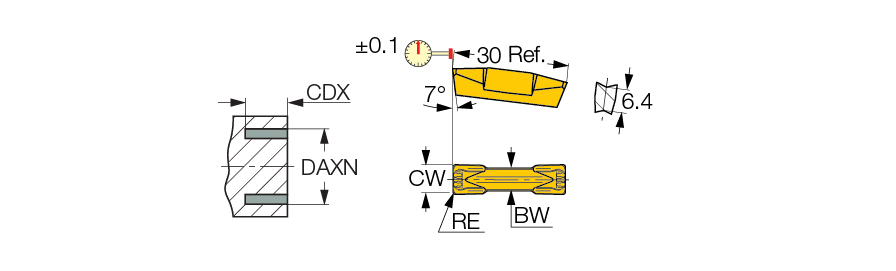

| Cutting Width (CW) | 8 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 27 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 50 mm |
| Insert Thickness (S) | 6.4 mm | Measurement Type | Metric |
| Insert Length (INSL) | 30 mm | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiC+Al2O3 | Body Material | Carbide |
| Grade | IC428 | Unit | M |
Product Features
| Family Description | Utility, double-ended inserts. Used for heavy-duty turning, profiling and grooving. Maximum machining depth is 27 mm. | FamilyName | GDMY |
| Remarks | DMIN for internal machining = 65 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0207
Name
Groove/Turn Indexable Inserts
FamilyName
GDMY
BrandName
Iscar
