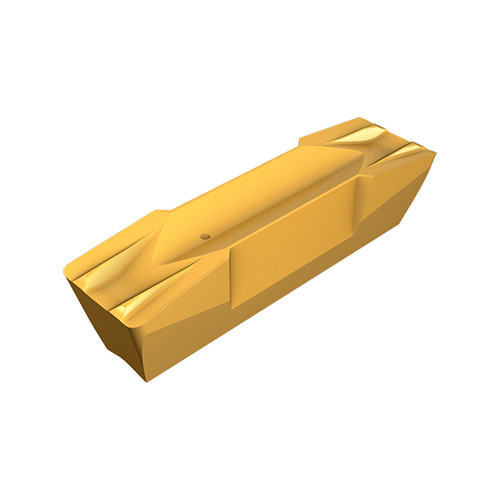

GIFG 8.00E-0.80 IC635
Inserts for deep face grooving and turning. Dmin 50 mm, Tmax 25 mm.

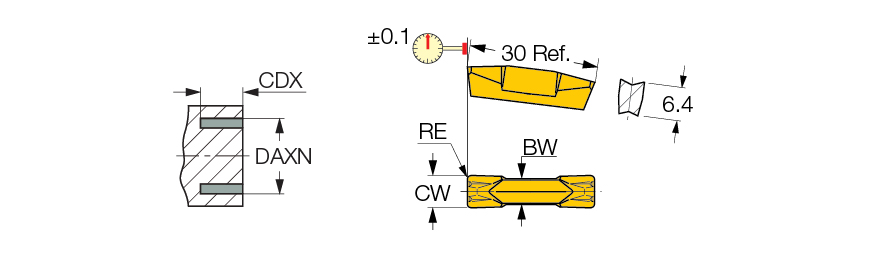

| Cutting Width (CW) | 8 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Corner Radius (RE) | 0.8 mm | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 25 mm | Axial Groove Outside Diameter Minimum (DAXN) | 50 mm |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Coating | TiN+TiC+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC635 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Inserts for deep face grooving and turning. Dmin 50 mm, Tmax 25 mm. | FamilyName | GIFG-E (W 8) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0211
Name
Groove/Turn Indexable Inserts
FamilyName
GIFG-E (W 8)
BrandName
Iscar
