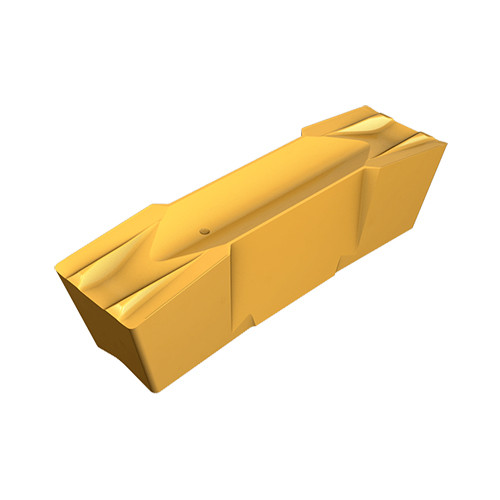

GIF 8.00-0.40 IC20
CUT-GRIP, precision-ground, double-ended inserts for external, internal and face grooving at low to-medium feeds.

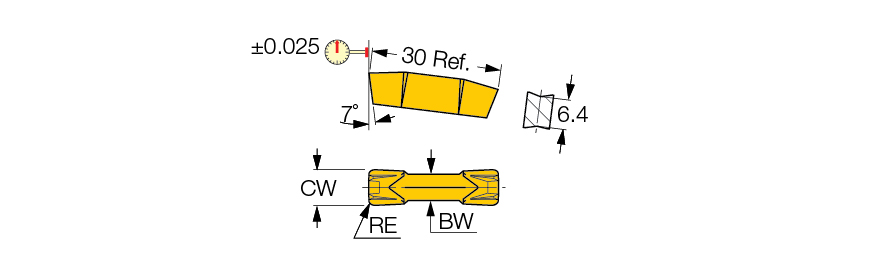

| Cutting Width (CW) | 8 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 27 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 65 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features
| Family Description | CUT-GRIP, precision-ground, double-ended inserts for external, internal and face grooving at low to-medium feeds. | FamilyName | GIF (long pocket) |
| Remarks | DMIN for internal machining = 65 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0230
Name
Groove/Turn Indexable Inserts
FamilyName
GIF (long pocket)
BrandName
Iscar
