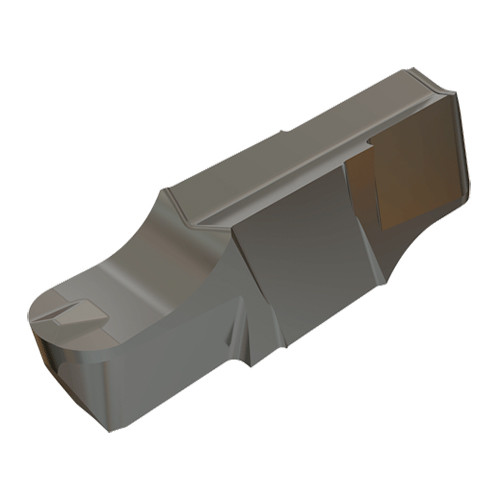

GIPI 4.00-2.0UL IC20
Precision inserts for internal undercutting. Double-ended, min. bore 20 mm.

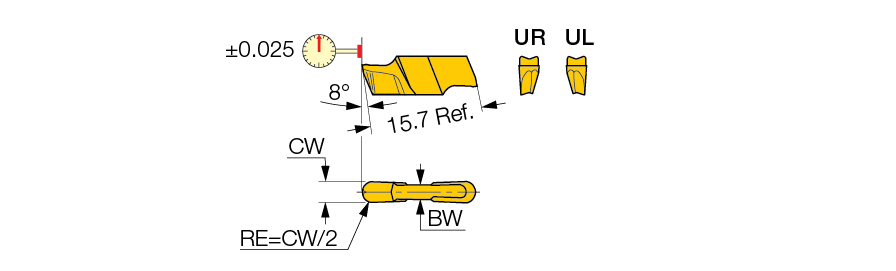

| Cutting Width (CW) | 4 mm | Application | | Int. Profiling | Int. Undercut & Turning | |
| Corner Radius (RE) | 2 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 15.7 mm | Chip Breaker Type | FG |
| Minimum Bore Diameter (DMIN) | 30 mm | Measurement Type | Metric |
| Coating | Uncoated | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC20 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Precision inserts for internal undercutting. Double-ended, min. bore 20 mm. | FamilyName | GIPI-UR/UL |
| Remarks | Tool's pocket should be modified | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0053
Name
Groove/Turn Indexable Inserts
FamilyName
GIPI-UR/UL
BrandName
Iscar
