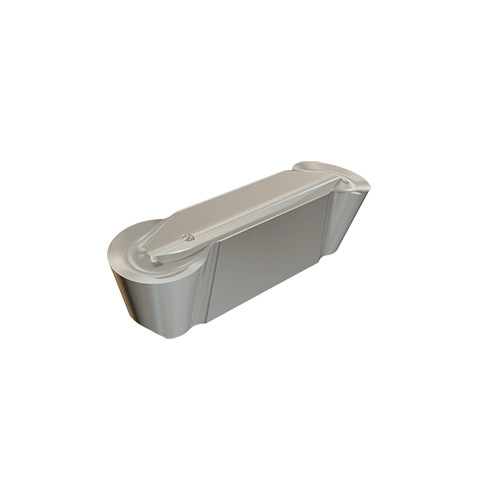

GIPA 8.00-4.00 IC20
Full radius, precision-ground inserts for machining aluminum wheels. Double-ended and polished to avoid built-up edge. Used in medium-to-high feeds.

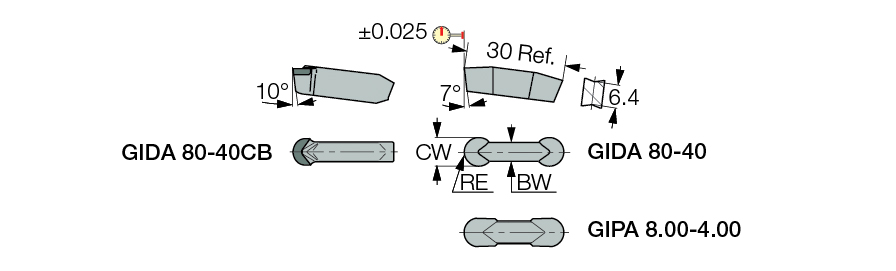

| Cutting Width (CW) | 8 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 4 mm | Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Ext. Undercut | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Machining Aluminum Wheels | Int. Profiling | Int. Undercut & Turning | |
| Cutting Depth Maximum (CDX) | 25 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Metric |
| Insert Length (INSL) | 30 mm | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features
| Family Description | Full radius, precision-ground inserts for machining aluminum wheels. Double-ended and polished to avoid built-up edge. Used in medium-to-high feeds. | FamilyName | GIPA/GIDA 8 (full radius) |
| Remarks | ID5 is a single-ended PCD tipped insert | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0224
Name
Groove/Turn Indexable Inserts
FamilyName
GIPA/GIDA 8 (full radius)
BrandName
Iscar
Related Documentation
Precision, double-ended, polished to avoid Built-Up edge. Excellent for turning and profiling aluminum wheels and soft materials at medium to high feeds.
