| Cutting Width (CW) | 2.39 mm | Application | | Ext. Grooving | Ext. Profiling | |
| Corner Radius (RE) | 1.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 4 mm | Chip Breaker Type | P |
| Inscribed Circle Diameter (IC) | 18.22 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 | Unit | M |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 8 mm |
Product Features

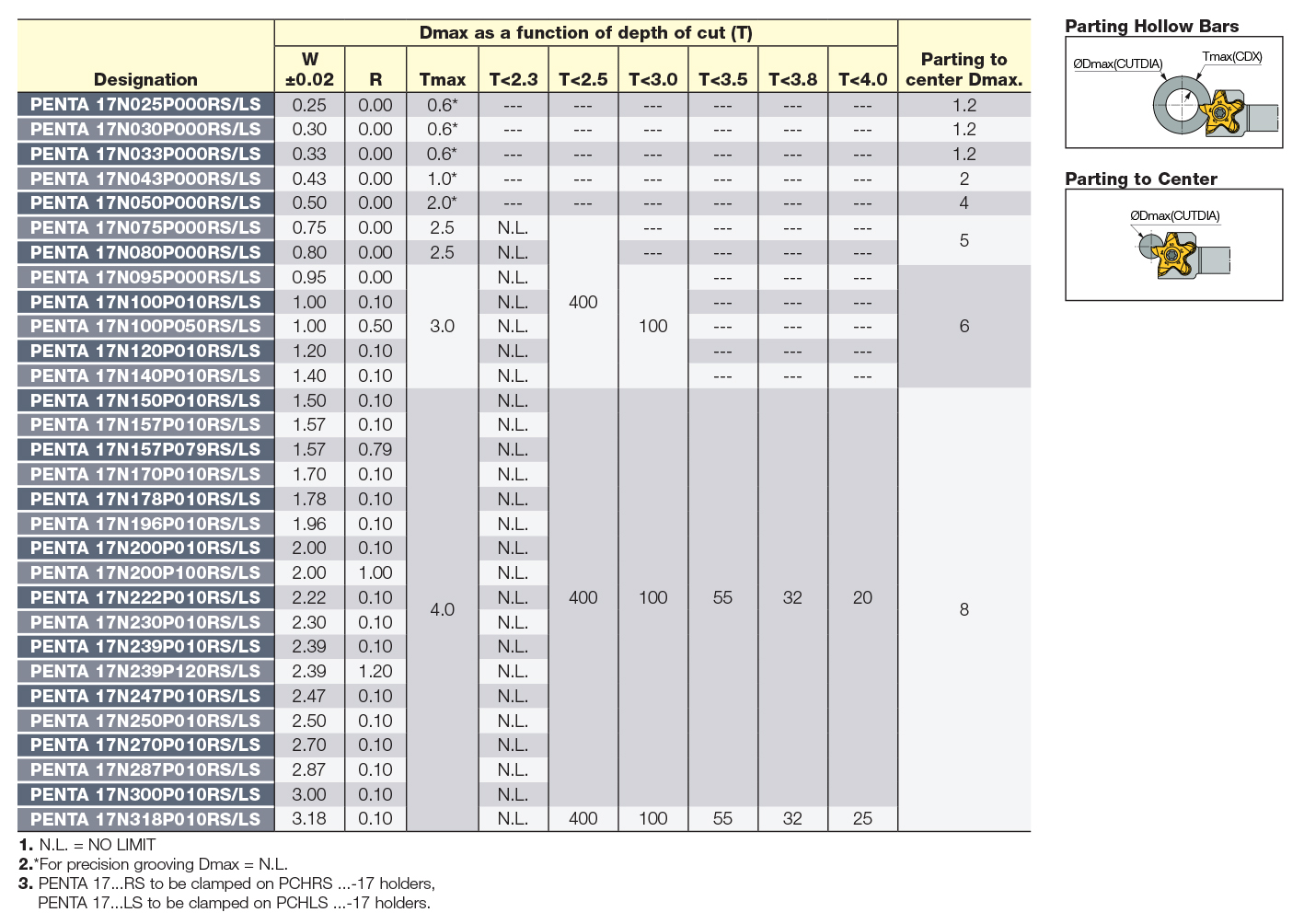

| Family Description | Precision grooving most economical inserts with 5 cutting edges for soft parts. | FamilyName | PENTA 17-P-RS/LS (full radius) |
| Remarks | For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0046
Name
Groove/Turn Indexable Inserts
FamilyName
PENTA 17-P-RS/LS (full radius)
BrandName
Iscar
