PENTA 17N170P010LS IC1008
Precision grooving and parting pentagonal inserts with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed.

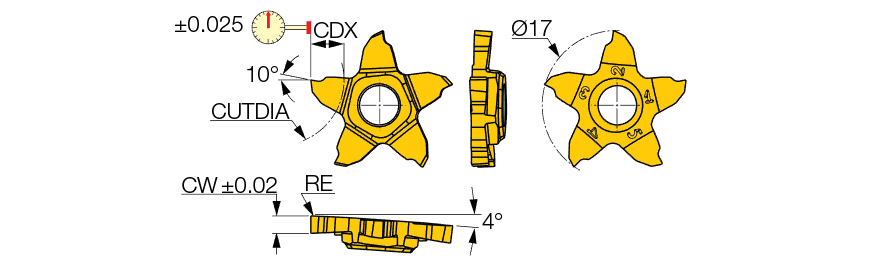

| Cutting Width (CW) | 1.7 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 4 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 18.22 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | IC1008 | Work Piece Parting Diameter Maximum (CUTDIA) | 8 mm |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision grooving and parting pentagonal inserts with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed. | FamilyName | PENTA 17-P-RS/LS |
| Remarks | For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0042
Name
Groove/Turn Indexable Inserts
FamilyName
PENTA 17-P-RS/LS
BrandName
Iscar
