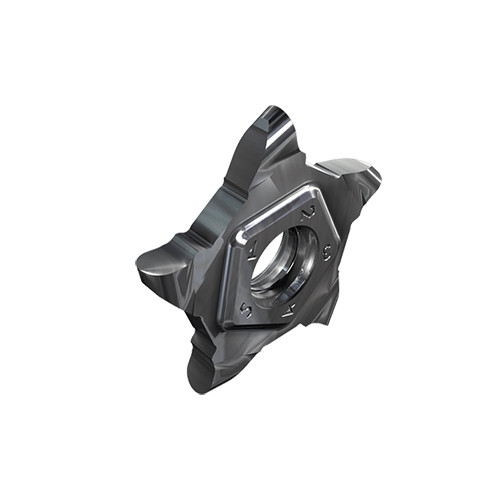

PENTA 24N150PF075 IC30N
Full radius parting and precision grooving inserts for soft and small parts. High positive rake, most economical system with 5 cutting edges.

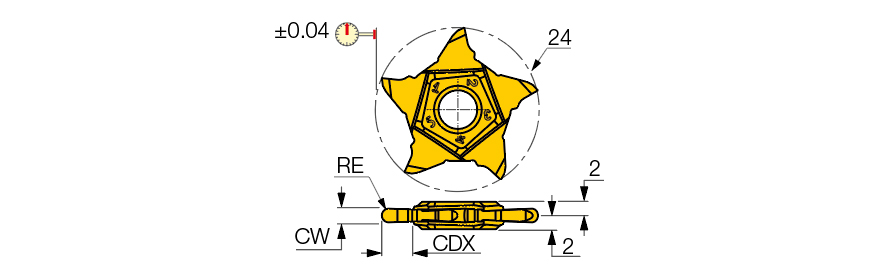

| Cutting Width (CW) | 1.5 mm | Cutting Edge Material | Cermet |
| Corner Radius (RE) | 0.75 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 6.2 mm | Applicable Material | | Steel | Stainless Steel | Hard Materials | |
| Inscribed Circle Diameter (IC) | 24 mm | Chip Breaker Type | PF |
| Insert Rake Angle (GAN) | 6 Degrees | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC30N | Unit | M |
Product Features
| Family Description | Full radius parting and precision grooving inserts for soft and small parts. High positive rake, most economical system with 5 cutting edges. | FamilyName | PENTA 24N-PF (full radius) |
| Remarks | For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0048
Name
Groove/Turn Indexable Inserts
FamilyName
PENTA 24N-PF (full radius)
BrandName
Iscar
