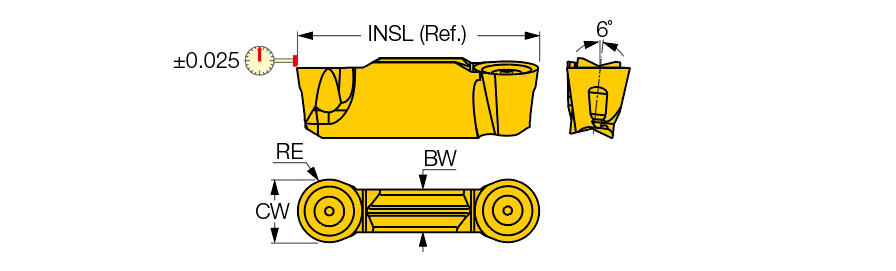

| Cutting Width (CW) | 6 mm | Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 3 mm | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Measurement Type | Metric |
| Insert Length (INSL) | 19.16 mm | Tool Type | Groove-Turn Utility Inserts |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC07 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features

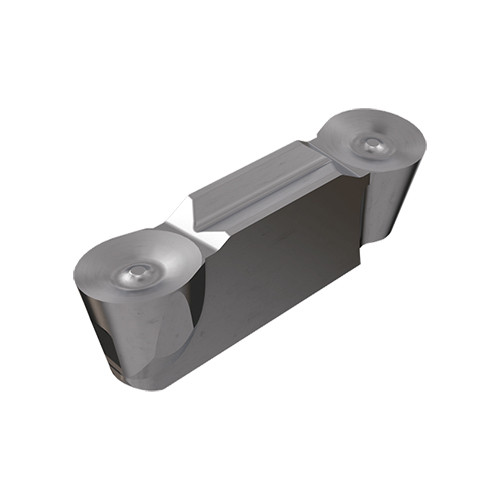

| Family Description | Full radius double-ended inserts, for turning and grooving in external, internal and face applications. | FamilyName | GRIPA (full radius) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0072
Name
Groove/Turn Indexable Inserts
FamilyName
GRIPA (full radius)
BrandName
Iscar
