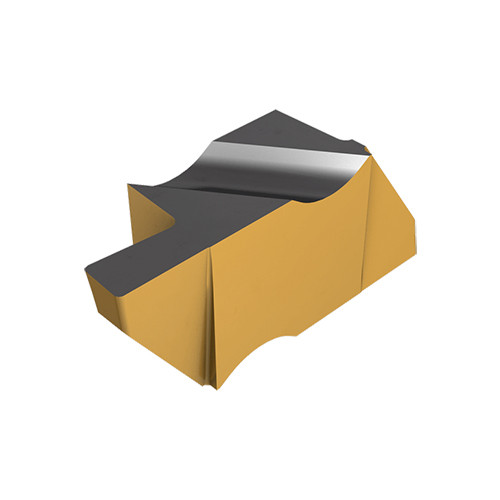

ING3122R (3.10) IC808
Precision double-ended flat top grooving inserts.

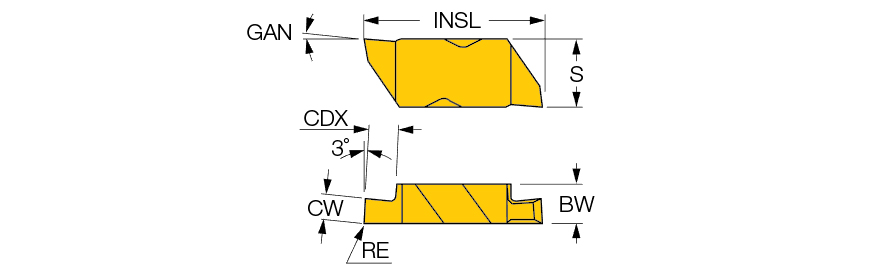

| Cutting Width (CW) | 3.1 mm | Application | | Ext. Grooving | Int. Grooving | |
| Corner Radius (RE) | 0.19 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.063 mm | Max. Grooving Feed (fg(max)) | 0.12 mm/rev |
| Insert Thickness (S) | 4.95 mm | Min. Grooving Feed (fg(min)) | 0.07 mm/rev |
| Overall Length (OAL) | 22.86 mm | Insert Rake Angle (GAN) | 0 Degrees |
| Insert Length (INSL) | 22.6 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 3.81 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.025 mm |
| Grade | IC808 | Insert Width (W1) | 4.95 mm |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Precision double-ended flat top grooving inserts. | FamilyName | ING/INGP-R/L |
| Remarks | DMIN according to related boring bar | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0124
Name
Parting Off Indexable Inserts
FamilyName
ING/INGP-R/L
BrandName
Iscar
