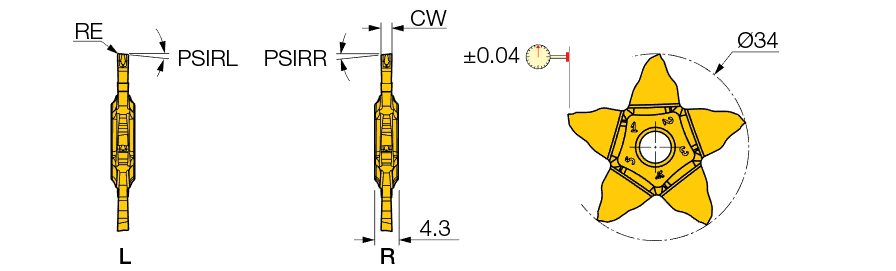

| Cutting Width (CW) | 1.5 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Corner Radius (RE) | 0.07 mm | Chip Breaker Type | J |
| Cutting Depth Maximum (CDX) | 8.5 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 18 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Application | | Parting | | Insert Width (W1) | 4.3 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Max. Grooving Feed (fg(max)) | 0.09 mm/rev |
Product Features

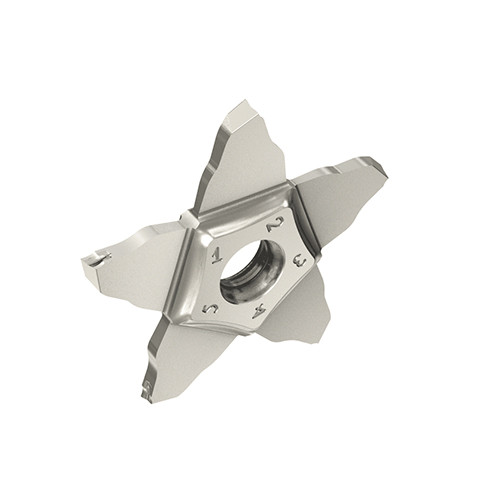

| Family Description | Insert with 5 cutting edges, for parting tubes, small and thin-walled parts. Most economical system available. | FamilyName | PENTA 34R/L-J |
| Remarks | For parting and grooving range, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0204
Name
Parting Off Indexable Inserts
FamilyName
PENTA 34R/L-J
BrandName
Iscar
