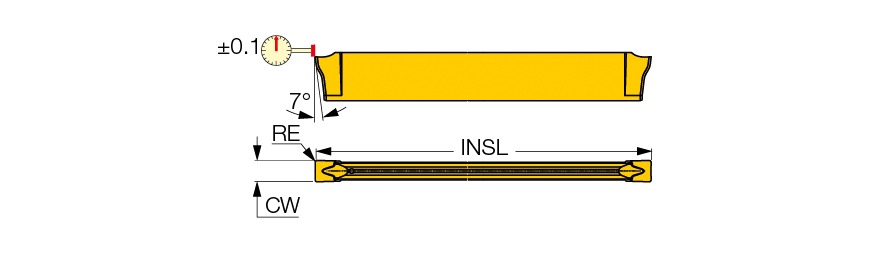

| Cutting Width (CW) | 2.05 mm | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Max. Grooving Feed (fg(max)) | 0.14 mm/rev |
| Overall Length (OAL) | 32 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Insert Length (INSL) | 32 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Depth Maximum (CDX) | 30 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Grade | IC808 | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features

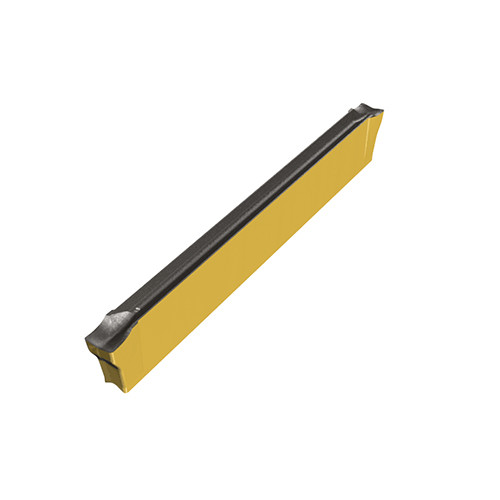

| Family Description | Parting & grooving, double-sided insert with a J-type chipformer. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds. | FamilyName | DGN-J-XL |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0065
Name
Parting Off Indexable Inserts
FamilyName
DGN-J-XL
BrandName
Iscar
