PENTA 34N230C020 IC908
Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds.
| Cutting Width (CW) | 2.3 mm | Max. Grooving Feed (fg(max)) | 0.14 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Chip Breaker Type | C |
| Cutting Depth Maximum (CDX) | 8 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 4.3 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | FamilyName | PENTA 34N-C |

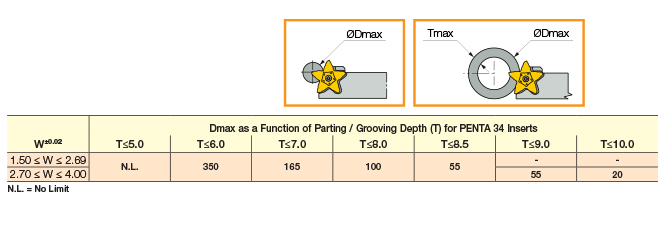

| Remarks | For parting and grooving range, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0227
Name
Parting Off Indexable Inserts
FamilyName
PENTA 34N-C
BrandName
Iscar
