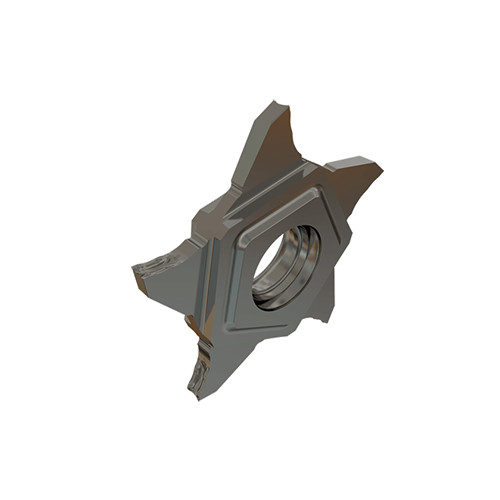

PENTA 24R300Z15D IC1008
Parting insert for soft parts and bearing steel, high positive rake. Most economical system with 5 cutting edges.

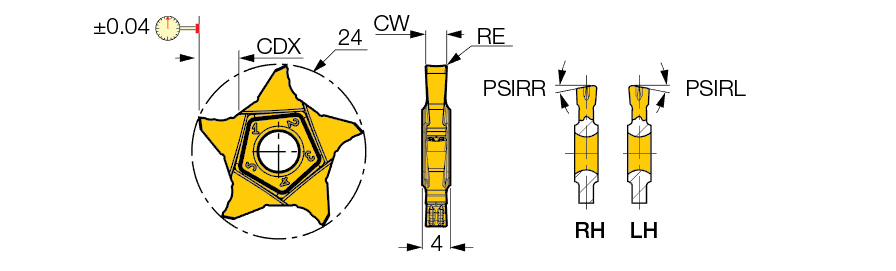

| Cutting Width (CW) | 3 mm | Max. Grooving Feed (fg(max)) | 0.14 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Chip Breaker Type | Z |
| Cutting Depth Maximum (CDX) | 6.4 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 12.8 mm |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC1008 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Application | | Parting | | Insert Width (W1) | 4 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Parting insert for soft parts and bearing steel, high positive rake. Most economical system with 5 cutting edges. | FamilyName | PENTA 24R/L-Z |
| Remarks | Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters Suitable for machining soft materials and bearing steel at low to medium feeds For parting and grooving range, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0112
Name
Parting Off Indexable Inserts
FamilyName
PENTA 24R/L-Z
BrandName
Iscar
