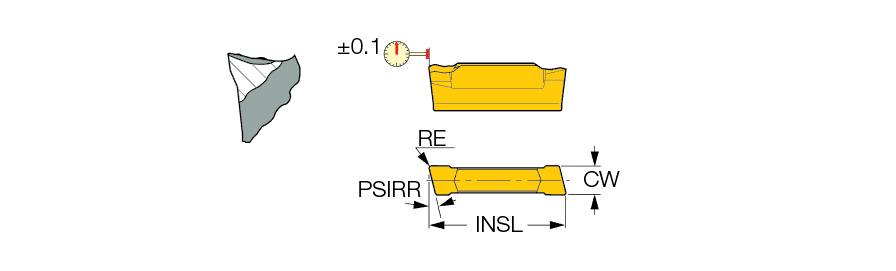

| Cutting Width (CW) | 3 mm | Application | | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 20.9 mm | Max. Grooving Feed (fg(max)) | 0.14 mm/rev |
| Insert Length (INSL) | 20.9 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Cutting Depth Maximum (CDX) | 18 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The tight chipformer ensures short, deformed chips. | FamilyName | DGR-Z/ZS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0032
Name
Parting Off Indexable Inserts
FamilyName
DGR-Z/ZS
BrandName
Iscar
