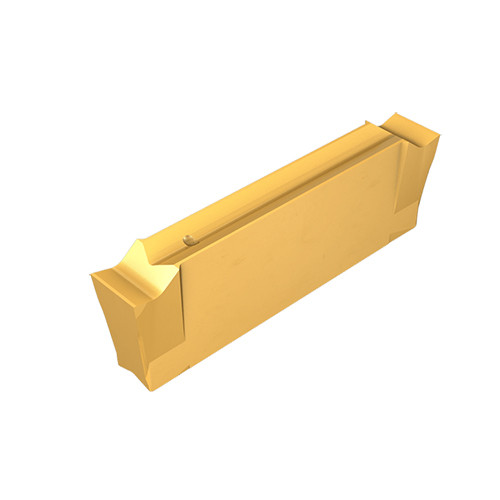

DGN 2000P IC508
Double-sided insert with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed.

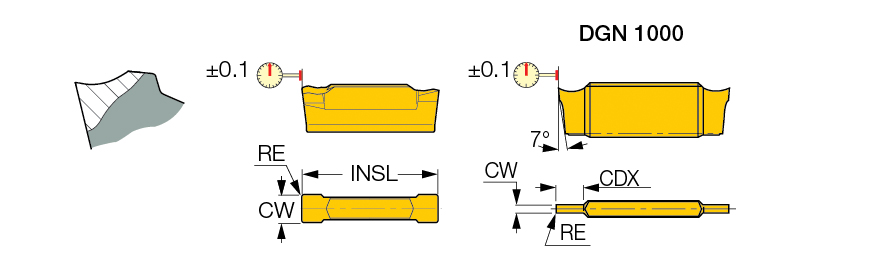

| Cutting Width (CW) | 2 mm | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.05 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Max. Grooving Feed (fg(max)) | 0.08 mm/rev |
| Overall Length (OAL) | 20 mm | Min. Grooving Feed (fg(min)) | 0.02 mm/rev |
| Cutting Depth Maximum (CDX) | 18 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC508 | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Cutting Direction (HAND) | Neutral | Unit | M |
Product Features
| Family Description | Double-sided insert with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed. | FamilyName | DGN-P |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0043
Name
Parting Off Indexable Inserts
FamilyName
DGN-P
BrandName
Iscar
